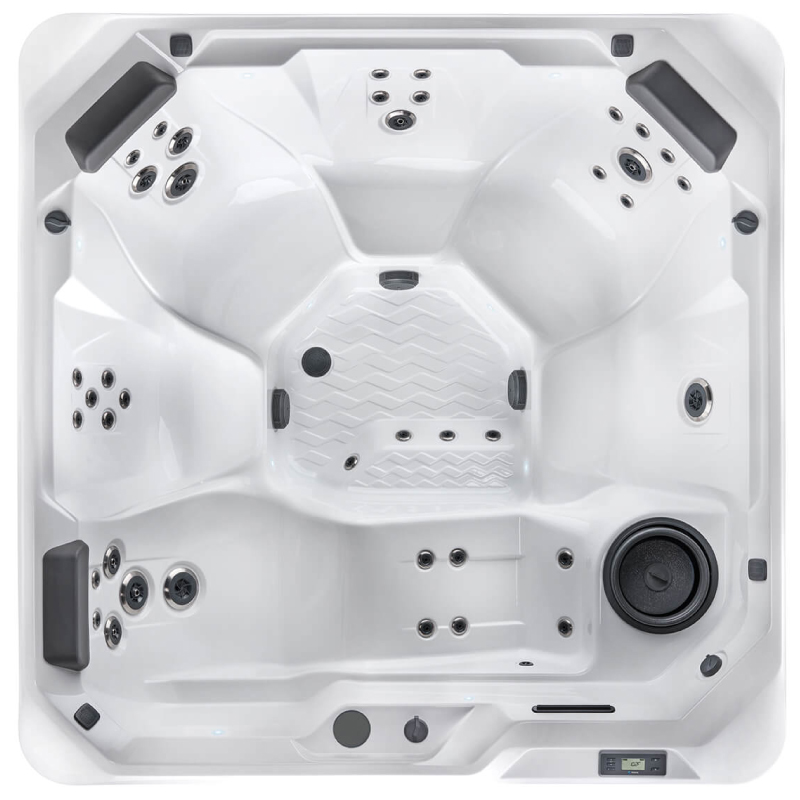

Hot Spring Spas - Relay®
Hot Spring Spas - Relay®
$0.00
The Relay is a value-priced spa that seats six and includes a relaxing lounge seat. This versatile model offers 40 powerful jets for a different massage in each seat.
Seating Capacity
6 Adults
Water Capacity
340 gallons/1,290 liters
Dimensions
7' x 7' x 36" 2.13m x 2.13m x 0.92m
Weight
830 lbs./375 kg dry 4,715 lbs./ 2,140 kg filled*
Total Jets
40
Select Your Hot Tub Colors
Choose My Colors
Color Options
*This hot tub is for illustrative purpose only to show the color options and may not be the actual model of tub.
Cabinet Color
Shell Color
Features
Heater
No-Fault®, 4000w/230v
Lighting System (interior)
10 multi-color LED points of light, dimmable
Entertainment systems (optional)
Wireless Sound System
Water Care System
FROG® In-Line Cartridge Ready
Water Features
Included
Jet Pump 1
Wavemaster® 6200
Two-speed
1.5 HP Continuous Duty
3.2 HP Breakdown Torque
Two-speed
1.5 HP Continuous Duty
3.2 HP Breakdown Torque
Jet Pump 2
Wavemaster® 6000
One-speed
1.5 HP Continuous Duty
3.2 HP Breakdown Torque
One-speed
1.5 HP Continuous Duty
3.2 HP Breakdown Torque
Control System
IQ 2020®
230v/50amp, 60Hz
Includes G.F.C.I. protected sub-panel
230v/50amp, 60Hz
Includes G.F.C.I. protected sub-panel
Effective Filtration Area
65 sq. ft., top loading filters
Cover Lifters (Optional)
CoverCradle®, CoverCradle II®, UpRite®
Steps (Optional)
Everwood® – Almond, Havana and Storm Polymer – Ash
Vinyl Cover
3.5" to 2.5" tapered 2 lb. density foam core Nutmeg or Storm
Energy Efficiency
FiberCor® Insulation; Certified to California Energy Commission (CEC) and APSP 14 energy efficiency standards for portable spas
Hot Tub Jets
3 XL Directional Hydromassage jets
2 XL Rotary Hydromassage jets
3 Directional Hydromassage jets
2 Rotary Hydromassage jets
30 Directional Precision® jets
2 XL Rotary Hydromassage jets
3 Directional Hydromassage jets
2 Rotary Hydromassage jets
30 Directional Precision® jets
